Part Number: 6YHXF
/
Vendor ID Number: 776
/
Custom:
![6'' 5CCT 1" deep regressed panel 120-2777-347V](/vendors/776/large/drr4-cc-wh-scaled-1.jpg "6'' 5CCT 1" deep regressed panel 120-2777-347V")
6'' 5CCT 1" deep regressed panel 120-2777-347V
86
42
Pack Of: 1
Call for Availability
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification

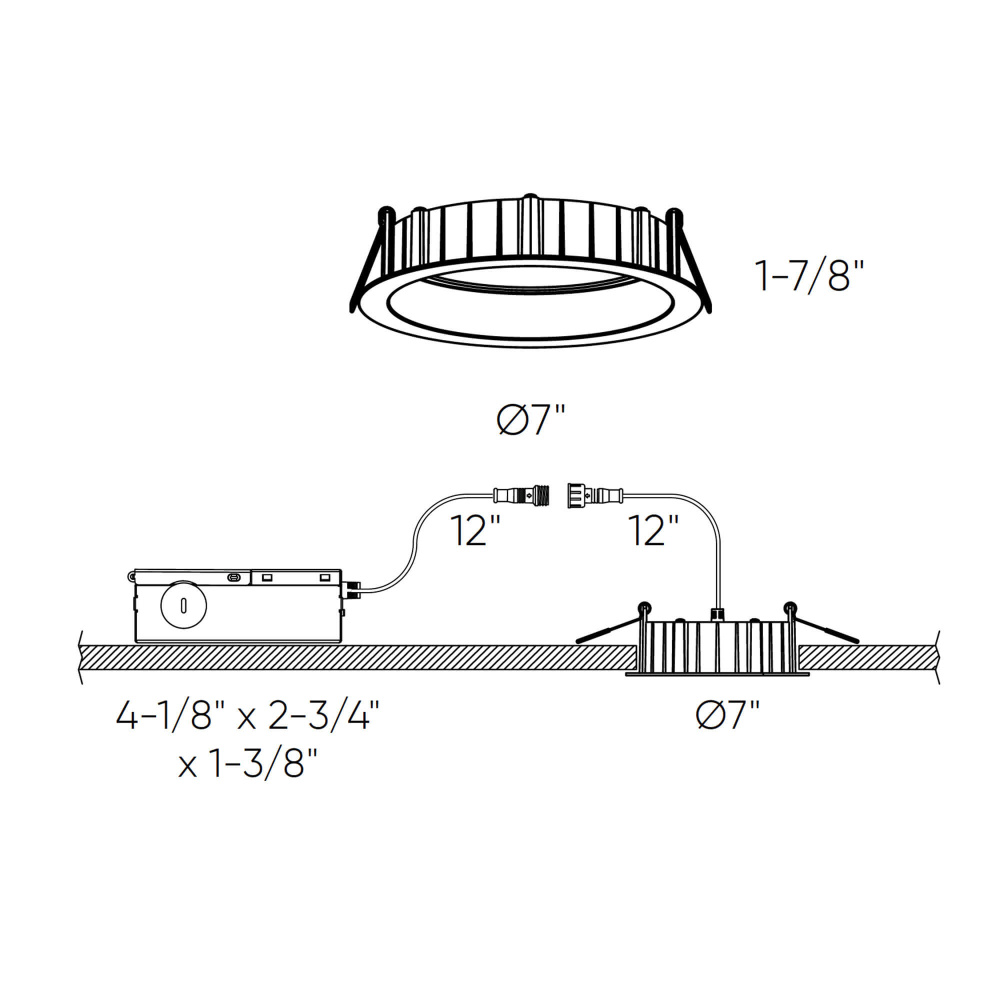

Dimensions
Height: 2.00"
Width: 7.00"
Length: 7.00"
Product Overview
The Notch series of regressed downlights is characterized by a deep-set LED position which greatly reduces glare, neatly packaged in a price-conscious solution to general lighting.
Product Availability
-
Item is usually in stock, but we'll be in touch if there's a problem
Additional Information
Edge lit technology
Frosted lens
Over 50,000 hours of service life
Smooth 360 degree wide spread
Switch-selectable CCT: 2700 K/3000 K/3500 K/4000 K/5000 K
Info & Guides
Technical Details
Details
Category:
Recessed Ltg.
Subcategory:
Recessed Lighting Accessories
Finish:
White /vendors/vendorImages white.jpg
Option:
Energy Star /vendors/vendorImages energy star.jpg
Title 24 /vendors/vendorImages ca title 24 compliant.jpg
Outdoor
Wet Rated
Location Rating:
Wet Rated
Category:
Recessed
Subcategory:
Regressed
Finish:
White
Option:
Energy Star
Outdoor
Title 24
Family:
Notch
Voltage:
120-277 V
Number of Bulbs:
1 Bulbs
Bulb Dimmable:
Yes
Bulb Hours:
50000
Kelvin:
2700, 3000, 3500, 4000, 5000
Material:
Aluminum
Ship Carton Height:
3.7
Ship Carton Length:
7.8
Ship Carton Width:
7.3
Warranty:
5 Years Limited
Weight:
1.5
Air-Tight (ASTM E283--4):
Yes
Beam Angle:
102
Bulb CRI:
90
Country of Origin:
China
Delivered Lumens:
1000
Dimmer Type:
0-10V Dimming
Energy Star:
Yes
IC Certification:
Yes
Indoor:
Yes
IP Rating:
IP44
Lens Material:
Acrylic
Location Rating:
Wet Rated
Max Wattage:
14 W
Maximum Working Temperature:
40°C
Minimum Working Temperature:
-20°C
Outdoor:
Yes
Safety Rating:
ETL Approved
Shipping Master Height:
16
Shipping Master Length:
23
Shipping Master Quantity:
24
Shipping Master Weight:
40
Shipping Master Width:
16
Title 24:
Yes
Wiring:
Hardwired
