Part Number: 40UUDAC
/
Vendor ID Number: 4799
/
Custom:
Field Selectable LED Downlight Retrofit; Deep Baffle; 5.8/7/9.5 Watts; 27K/30K/35K/40K/50K CCT; 4
Call For Price
294 In Stock
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Qty
Product Specification
Dimensions
Height: 3.25"
Width: 5.12"
Finish
White
Product Overview

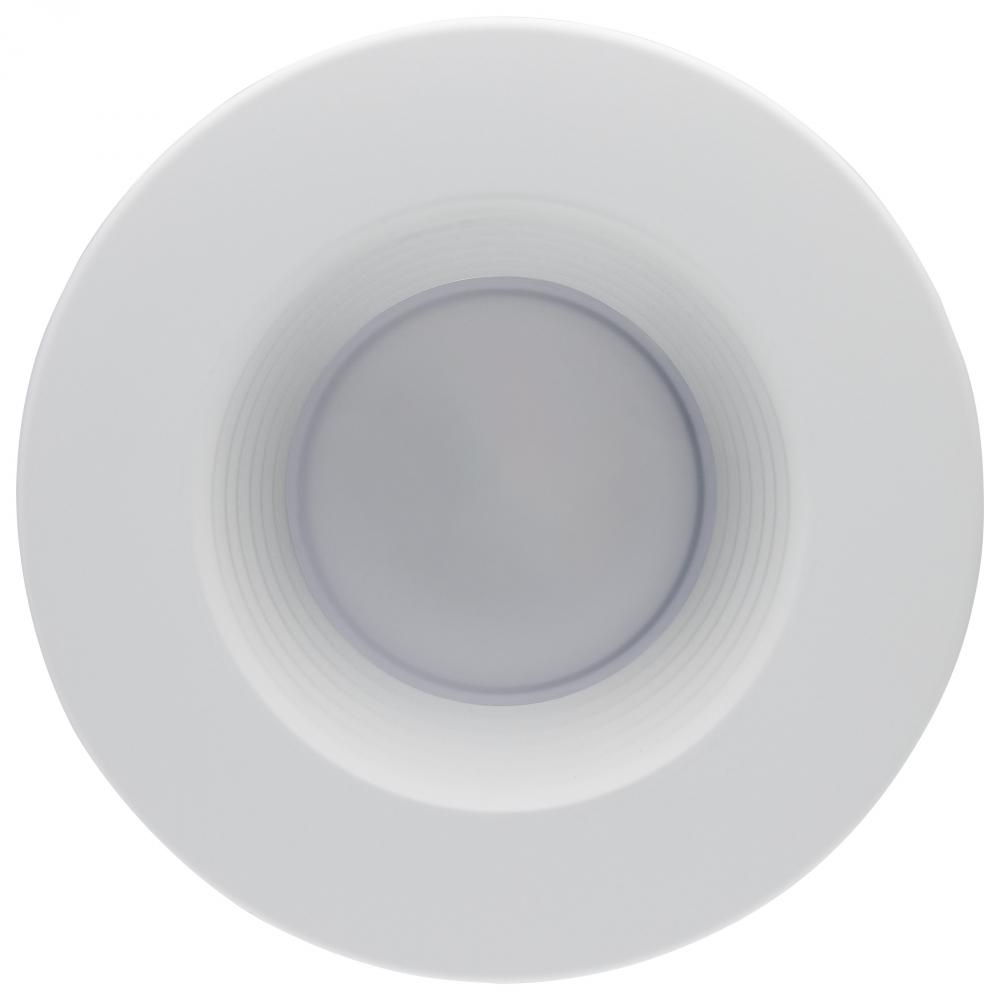

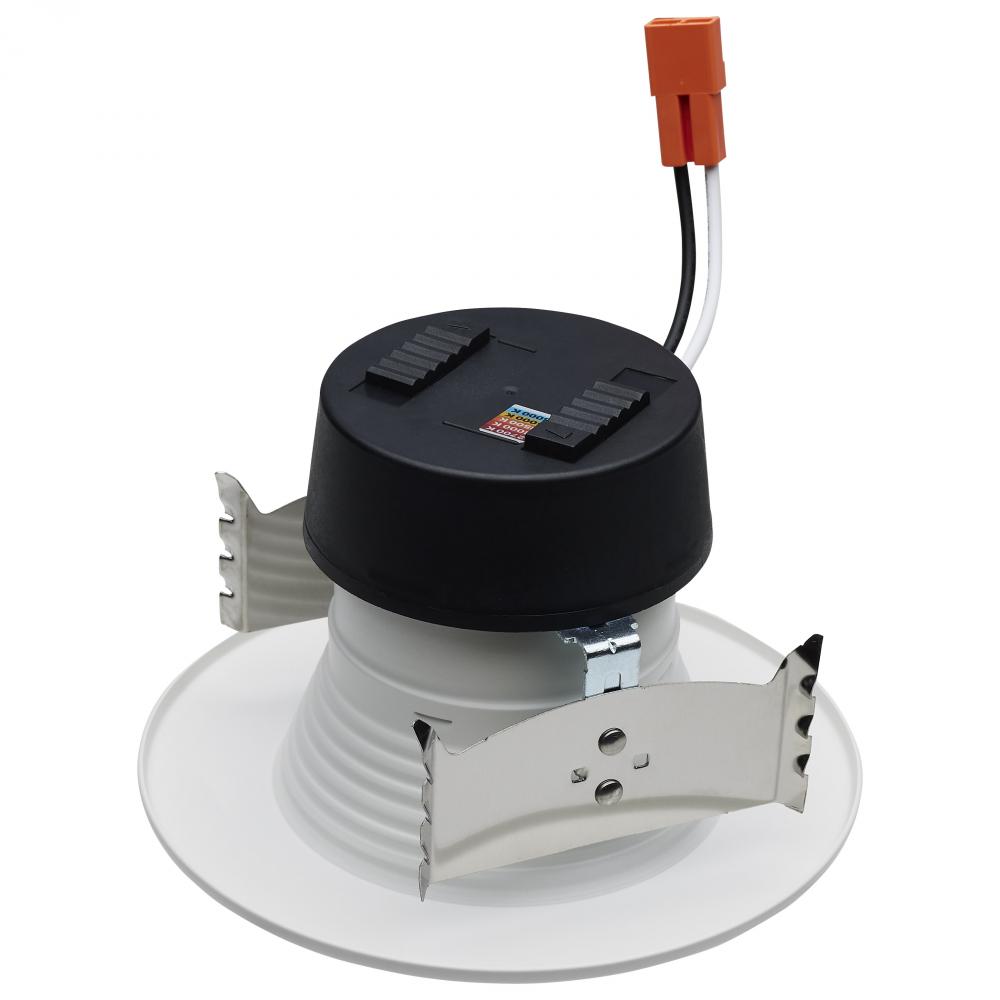

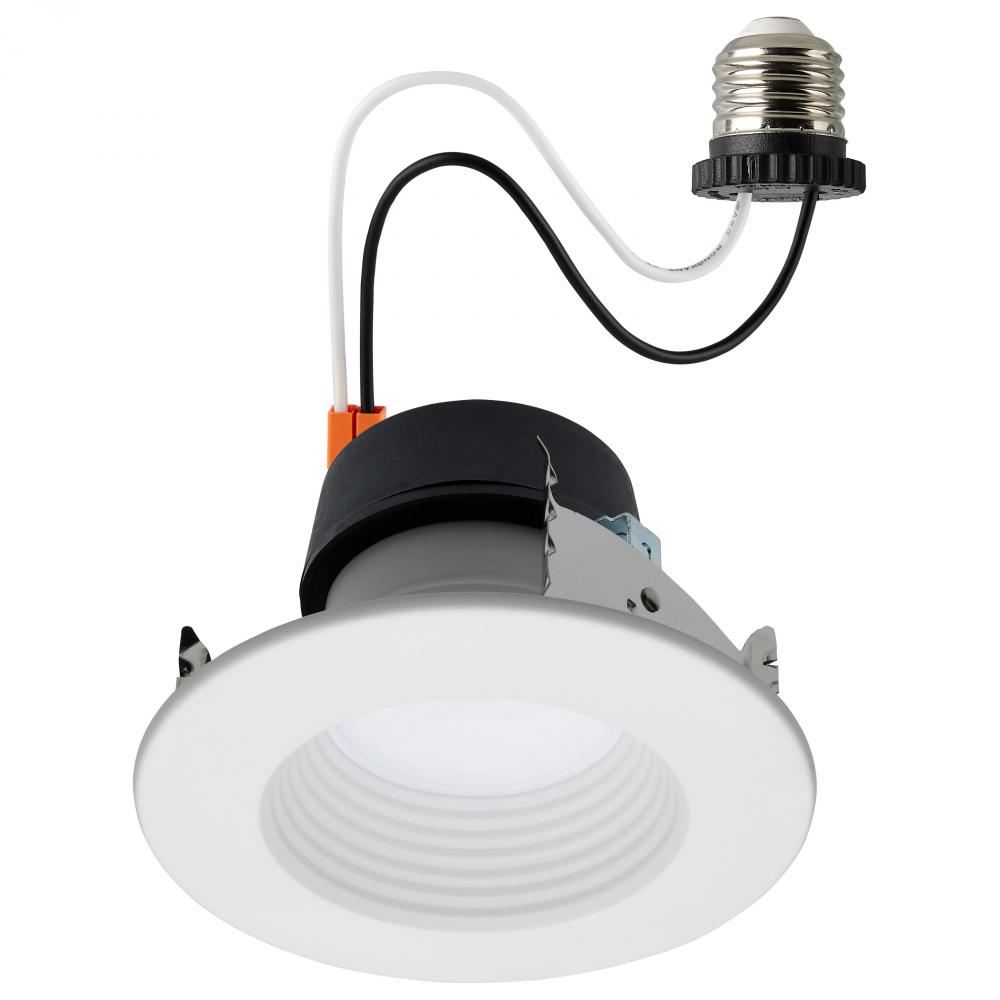

Field Selectable LED Downlight Retrofit; Deep Baffle; 5.8/7/9.5 Watts; 27K/30K/35K/40K/50K CCT; 4 Inch; Round Shape; White Finish; 120 Volts
Product Availability
-
Item appears to be in stock and ready to ship
Technical Details
Details
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Finish:
White /vendors/vendorImages white.jpg
Option:
Energy Star /vendors/vendorImages energy star.jpg
LED
Prop 65 /vendors/vendorImages prop65.png
Finish:
White /vendors/vendorImages white.jpg
Category:
Recessed
Sub Category:
Retrofits
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm White to Natural Light
Diameter:
5.12
Dimmable:
Yes-Dimmable
Each Height:
5.31
Each Length:
5.31
Each Width:
3.43
Lumens:
600L/750L/900L
Tariff Code:
8539.52.0091
Warranty:
5 Year Limited - Fixtures
Air Tight:
No
Amps:
0.050/0.062/0.080A
ANSI Base:
E26 Adapter
Beam Angle:
75
CA Prop-65:
Lead
Can Size:
4 in.

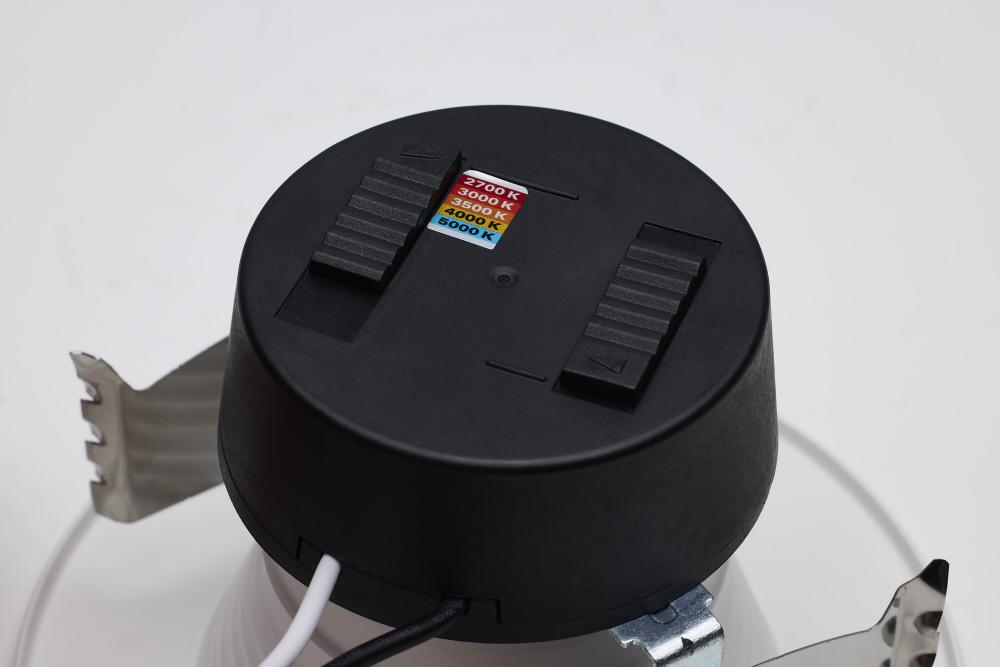

CCT Selectable:
Yes
CEC:
California T24 2016 - 2022 JA8 Listed; T20 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
California T24 Listed
Ceiling Aperture:
4.00 in. Cutout
Connection:
Connector or Adapter
Country Of Origin:
China
CRI:
90+
Dimmable Down To:
100 to 10 percent
Dimming Type:
Phase cut
Each Cube:
0.056
Each Quantity:
1
Efficacy:
103.45/107.14/94.74 LPW
ES Category:
Downlight Recessed
ES Unique ID:
ESID-3354723
FCC Compliant:
Yes

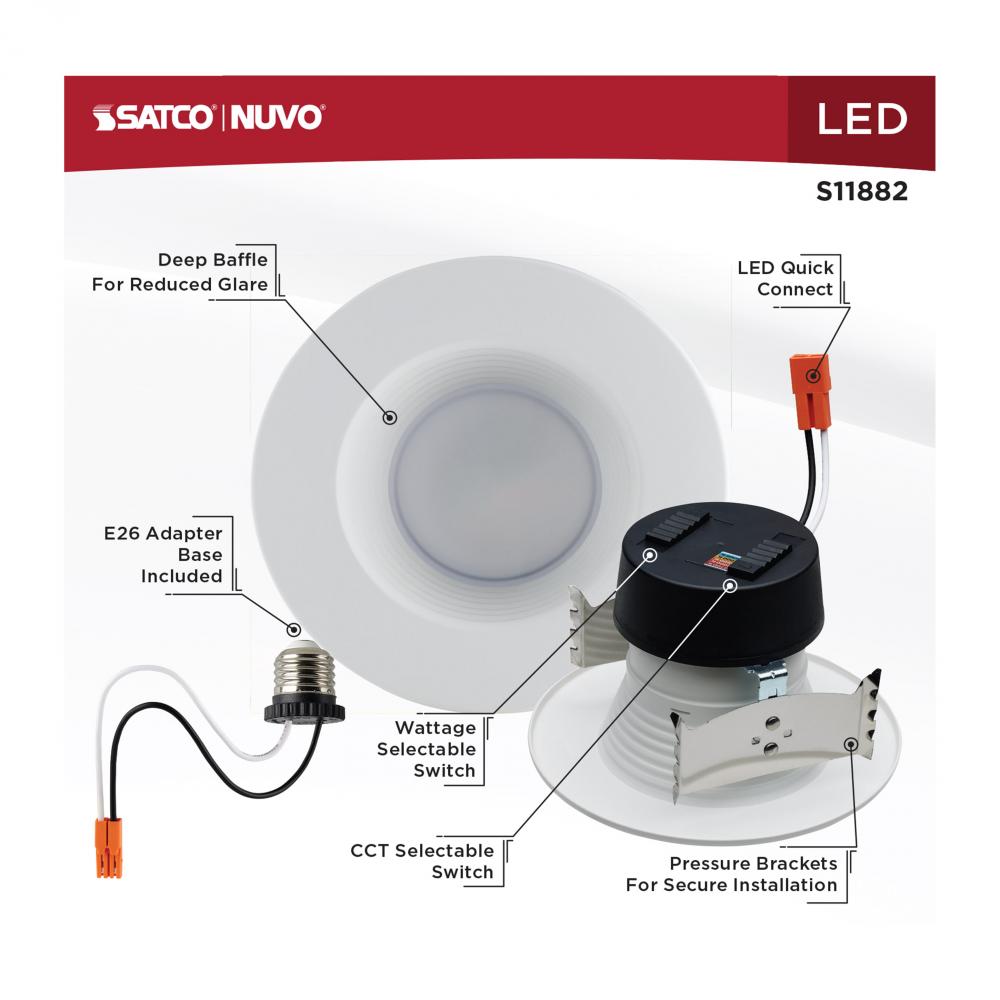

Feature 1:
CCT and Wattage Selectable
Feature 2:

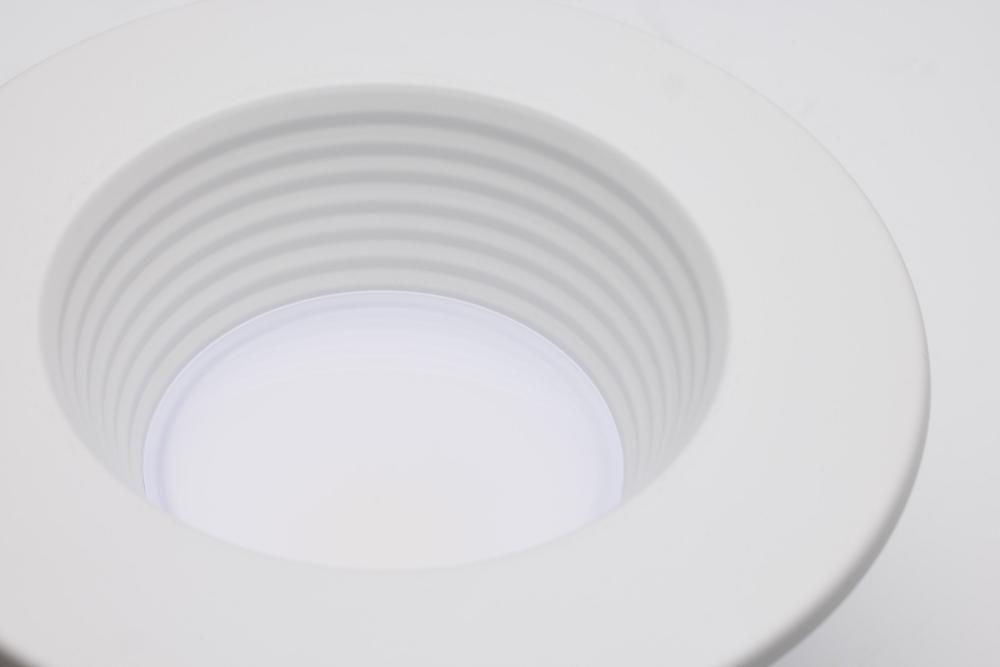

Stepped Baffle for Reduced Glare
Feature 3:
Dimmable
Feature 4:
E26 Adapter Included
Feature 5:
90 CRI
Feature 6:
Wet location rated
Feature 7:
Accessories available to meet Non-Conductive "Dead-Front" Trim Requirements
Feature 8:
50,000 Hour Functional Life
Finish Family:
White
Fixture shape:
Round
IC Rated:
No
Incandescent Equivalent:
60W
Indoor Outdoor:
Indoor
JA8 Compliant:
Yes
Lens Finish:
Matte Frosted
Lens Material:
Polycarbonate (PC)
Long Description:
SATCO NUVO's S11882 4-inch round field selectable deep baffle retrofit downlight is designed with the look of sophistication in mind. The deep stepped baffle crafted on this downlight drastically reduces glare and with a high CRI rating of 90, users ca
Material:
Aluminum
Mounting Procedure:
Ceiling
Operating Frequency:
60Hz
Operating Temp:
-20C (-4F) to +40C (+104F)
Order In Multiples Of:
1
Pack Type:
Color Box
Power Factor:
0.94
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's LED Field Selectable Deep Baffle Retrofit Downlights are designed with the look of sophistication in mind. The deep stepped baffle crafted on these downlights drastically reduces glare and with a high CRI rating of 90, users can enjoy enha
Safety Listing:
cETLus - Classified
SDS class:
LED_Fixture
Short Description:
9.5WLED/DLR/4/WS/5CCT/RD/DB
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
Yes
Title 24 Compliant:
Yes
Total Harmonic Distortion:
<25%
Trim Color:
White
Wattage Selectable:
Yes
Weight Lb.:
0.39
